Anticorrosive lining

  • PTFE Lined Pipe Fittings

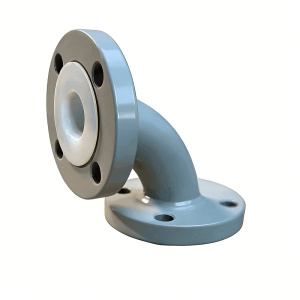

    PTFE Lined Pipe Fittings

    1.Virgin PTFE or PFA liner with 100% pure fluoropolymer for universal chemical resistance to acids, solvents, and oxidizing agents.
    2.Isostatic molding process for complex geometries (Tees, Crosses) ensuring uniform liner wall thickness at all interior curves and branch intersections.
    3.Compression tight-lining process for straight spools and large-radius standard elbows with maximum liner-to-shell contact area.
    4.Full-vacuum rated with mechanical interlock design preventing liner collapse under negative pressure service.
    5.100% spark tested at 10–15KV ensuring zero pinholes or thin spots in the fluoropolymer lining.
    6.Carbon Steel (WCB/A105) or Stainless Steel (CF8/CF8M/SS304/SS316L) shell options with ANSI/DIN flange drills.
    7.DN15–DN600 (1/2″–24″) with PN10/PN16/Class 150 pressure ratings and custom configurations available.
    8.PFA upgrade option for extreme thermal cycling, full vacuum, or high-particulate abrasive service conditions.

    Get a Quote
  • Rubber-Lined Piping & Pipe Fittings

    Rubber-Lined Piping & Pipe Fittings

    • 1.Carbon steel shell with premium rubber lining (NR, NBR, EPDM, Neoprene, Ebonite, Hypalon, Chlorobutyl) for severe corrosion and high-abrasion service.
    • 2.Complete fitting range: 1.5D/3D elbows (90°/45°), concentric/eccentric reducers, equal/reducing tees, crosses, and custom fabricated shapes.
    • 3.DN100–DN1600 (4″–32″) with customizable lining thickness from 3mm to 25mm based on abrasion severity and service life requirements.
    • 4.Outstanding wear resistance for slurry transport, tailings lines, and mineral processing applications with high particulate loading.
    • 5.Vibration damping and noise reduction properties protect connected equipment and improve workplace acoustics.
    • 6.Shop-fabricated units for standard configurations and on-site field lining service for large/complex installations.
    • 7.100% spark tested (holiday detection) ensuring pinhole-free liner integrity with full material traceability.
    • 8.Flange drilling to ANSI Class 150/300, EN PN10/16/25, DIN, JIS, or custom specifications.
    Get a Quote
